Project Topic：Smart Parking System based on Computer Vision

Team Members

Project Introduction

Motivation

Goal

Deliverable

Hardware Used in This Project

Project Overview

Generally speaking, to recognize parking spots, it is necessary to classify and train for both cars and parking spots if we want to ensure the accuracy of prediction. But in reality, the ways that people use to identify a parking spot in different parking lots are diverse. In some parking lots, the parking spots may be separated by clear lines, while in other parking lots, there is no conspicuous and clear physical sign for identification, which will greatly increase the complexity of the project. On this basis, we decided to focus on the most essential part of parking spot recognition—car recognition. If cars can be identified precisely, we can cross-compare the prediction result with the pre-loaded parking spot information, and then easily achieve our goal. Then, on this basis, we will notify the user with the parking space information by sending messages to their phones.
Based on this, we decided to use yolov5 to complete subsequent projects, and use twilio to send information from PC to the phone.

Yolov5

Yolov5 is very similar to Yolov4, and it is still divided into four parts: Input, Backbone, Neck, Prediction. It provides 4 models for training and prediction: Yolov5s,Yolov5m,Yolov5l and Yolov5x. The input of Yolov5 uses the same Mosaic data enhancement method as Yolov4.
In the Yolo algorithm, for different data sets, there will be anchor boxes with initial length and width. In network training, the network outputs the prediction frame based on the initial anchor frame, and then compares it with the ground truth of the real frame, calculates the gap between the two, and then reverses the update to iterate the network parameters. This algorithm can provide a rather precise prediction when it comes to small targets in a high resolution image, which is a big improvement compared with its previous versions. In our project, because of the constraints of hardware, we mainly use Yolov5m model for training and prediction. The structure of Yolov5 and algorithm performance test chart are shown below.

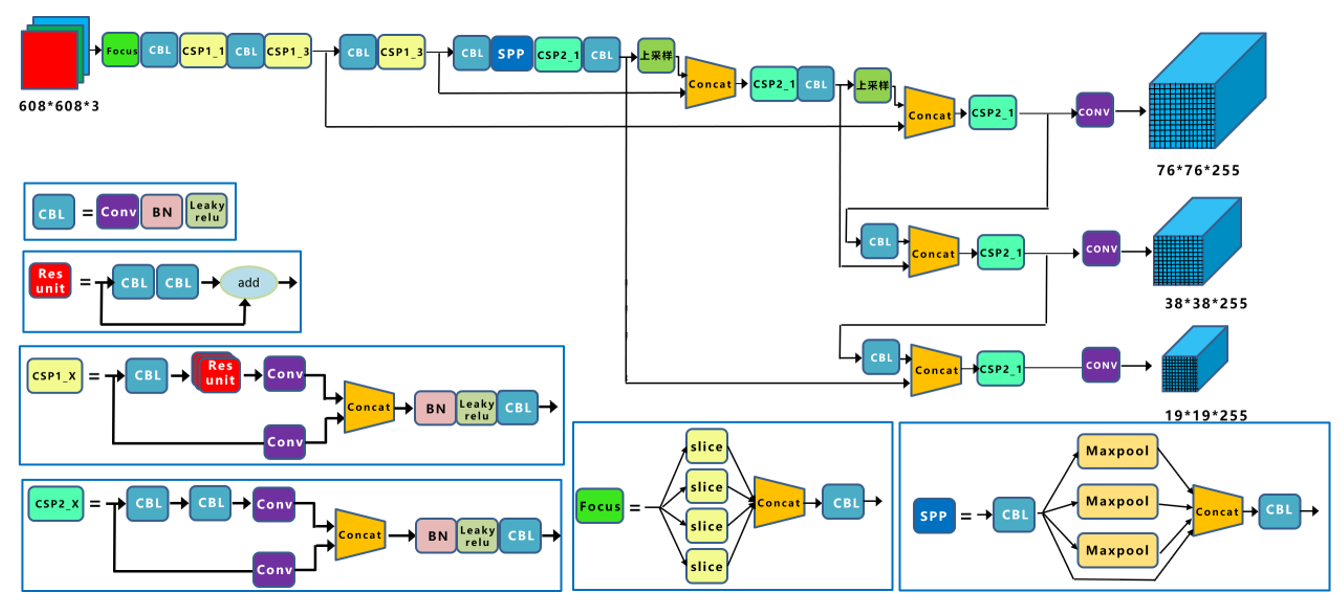

The structure of Yolov5

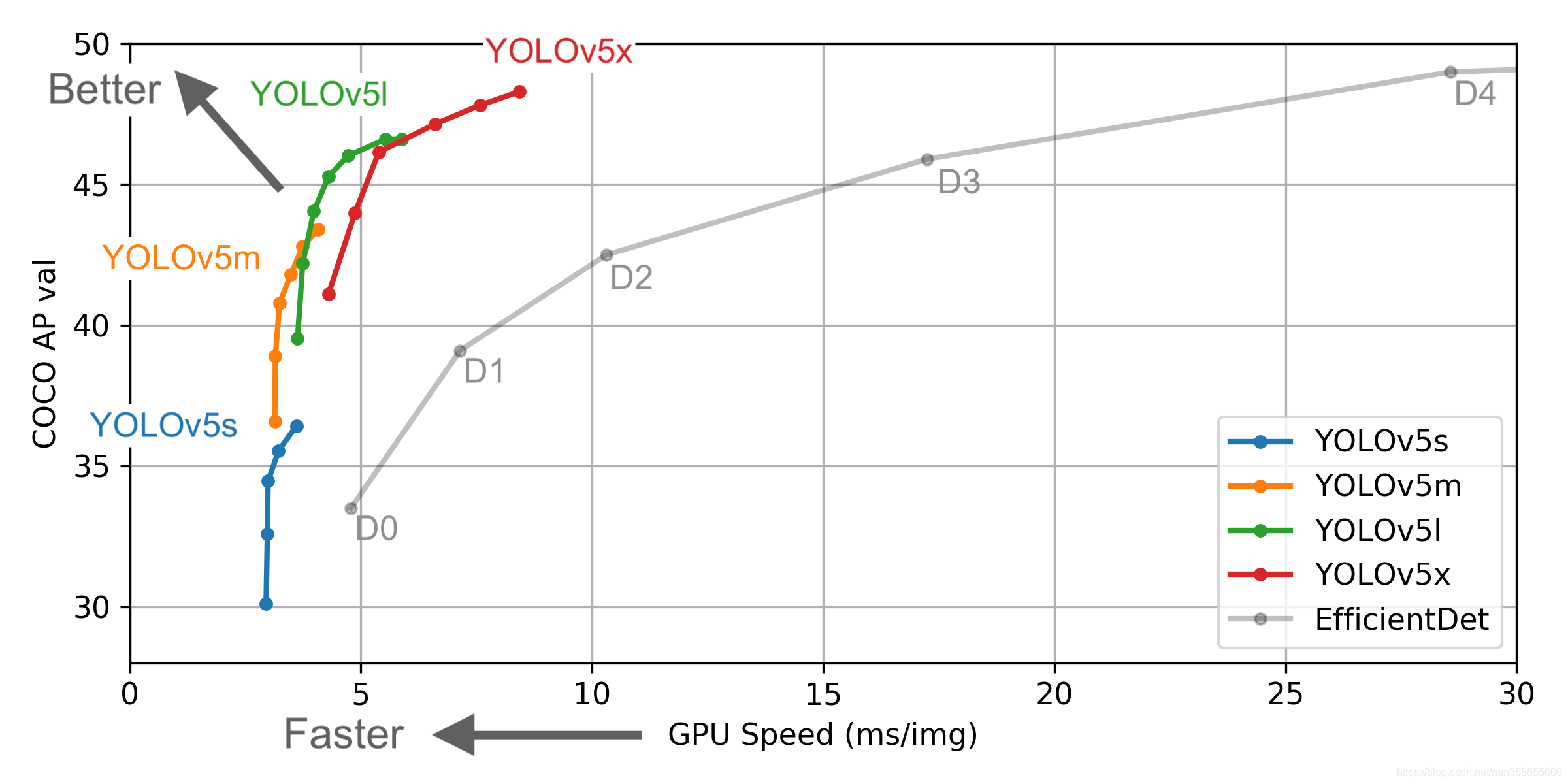

(reference: https://blog.csdn.net/nan355655600/article/details/107852353) Algorithm performance test chart
(reference: https://github.com/ultralytics/yolov5)

Set Up

We use anaconda to setup a virtual environment with different libraries for python development. For training and prediction based on yolov5, the required libraries are listed here:
Cython
numpy>=1.18.5
opencv-python
torch>=1.5.1
matplotlib
pillow
tensorboard
PyYAML>=5.3
torchvision>=0.6
scipy
tqdm
pycocotools>=2.0
For message sending and receiving based on twilio, we also need to install twilio library.

Creating Training Data Set

Normally, car position prediction requires a data set containing car images from various directions. In the beginning phase of our project, we mainly focus on cars’ top view images since cameras are often set at above in most open air parking lot. Otherwise they are placed at a reasonable height in order to obtain a larger view of the parking lot. Admittedly, cars which are parked away from cameras would be recorded from another side and that will reduce the prediction accuracy of our model. But this a good bake off for the total situation.

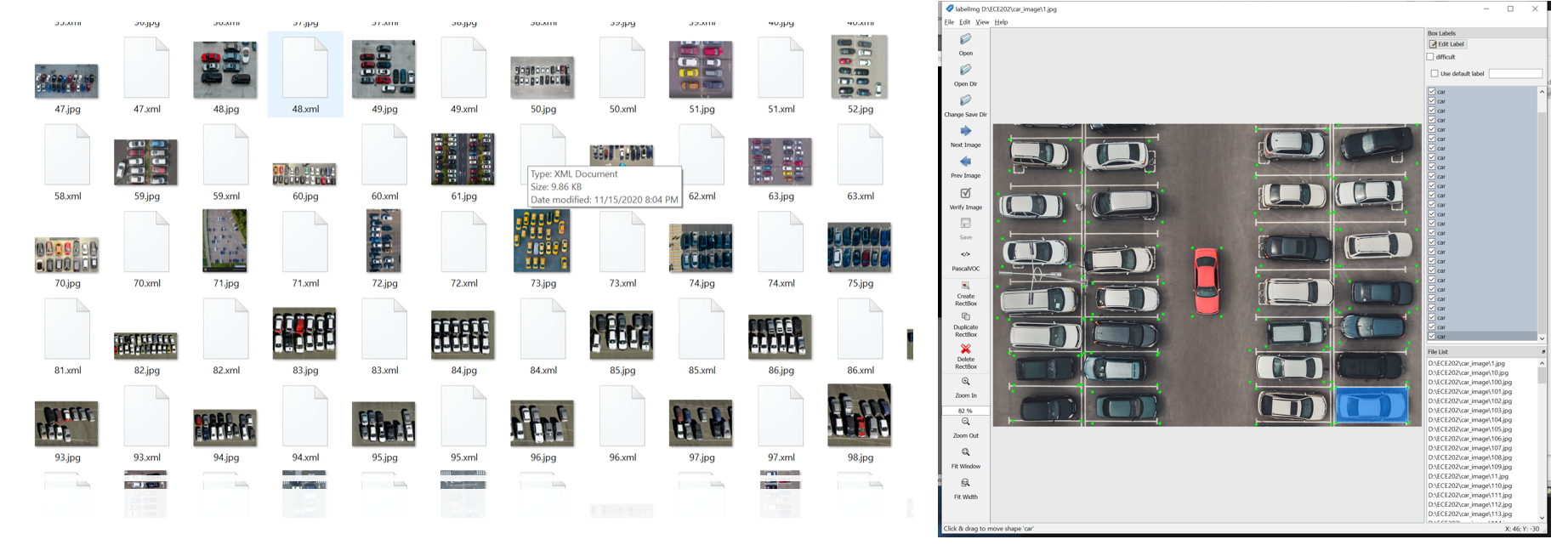

As shown below, we collected 150 car top view images and use LabelImg to label out the cars.

training data set
After normalizing those pictures and randomly separate them into 2 groups at a ratio of 9:1 for training and verification, we have the dataset available.

Training Process and Result

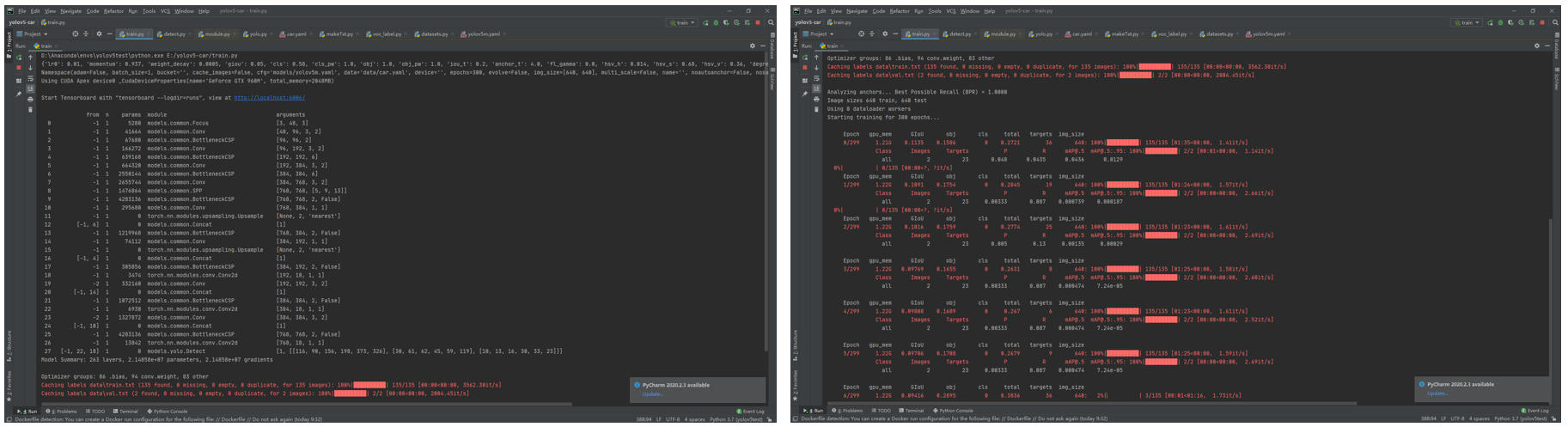

We train the date set for 300 epochs using yolov5m and get 2 weights, the best one and the last one and we choose the best one for prediction.

training
training

Estimated time for the training process is about 5 hours. (limited by the gpu, GeForce GTX 960M)

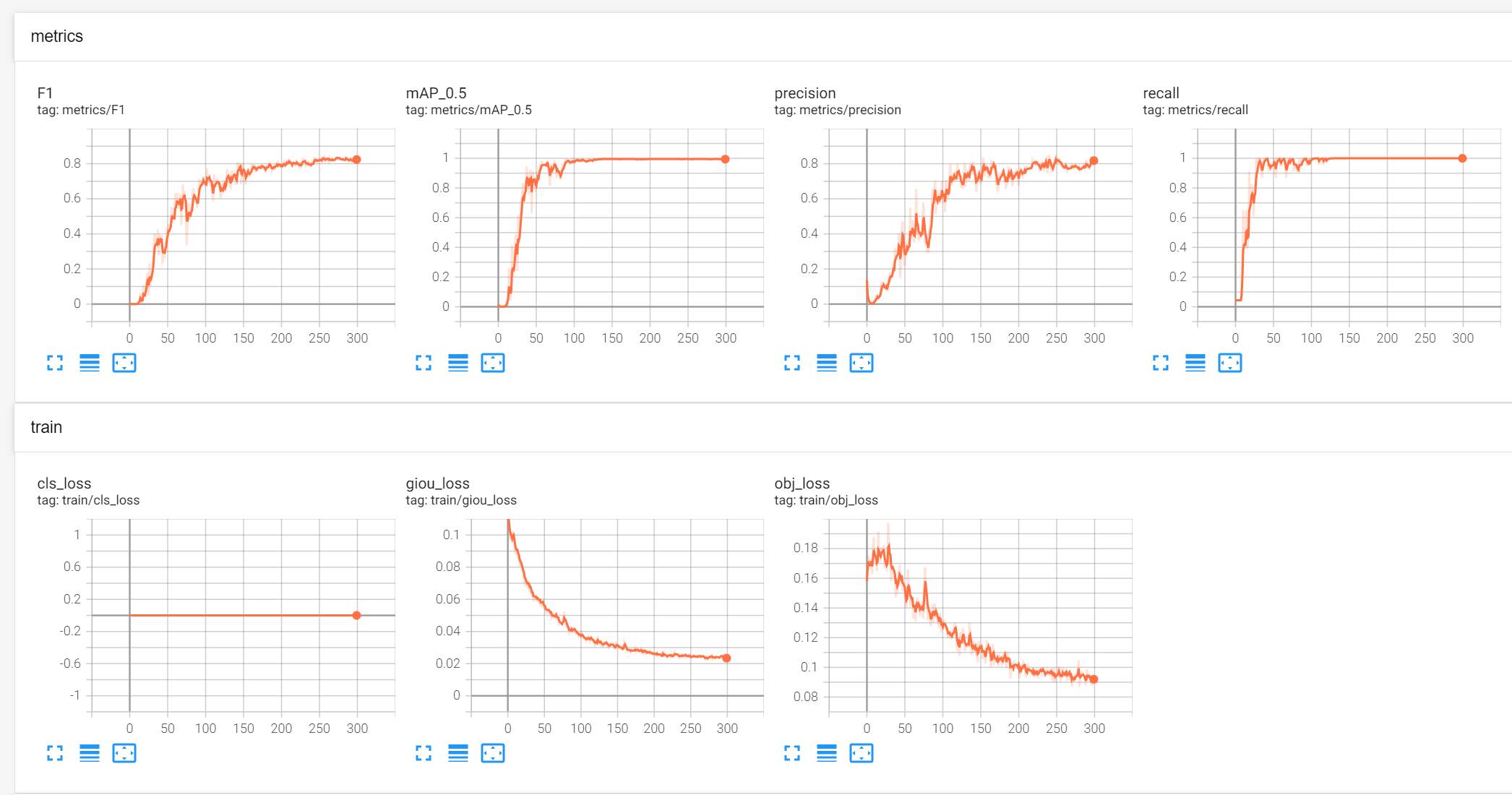

The training result is also shown below. As we can see the loss is getting smaller and smaller so the training result can meet our expectation.
training

Prediction Result

We applied two ways to test the result: loading image test and using a camera. At the first stage, test image and video is the top view of a parking lot, with clearly marked parking spots. Individual test results are shown below.

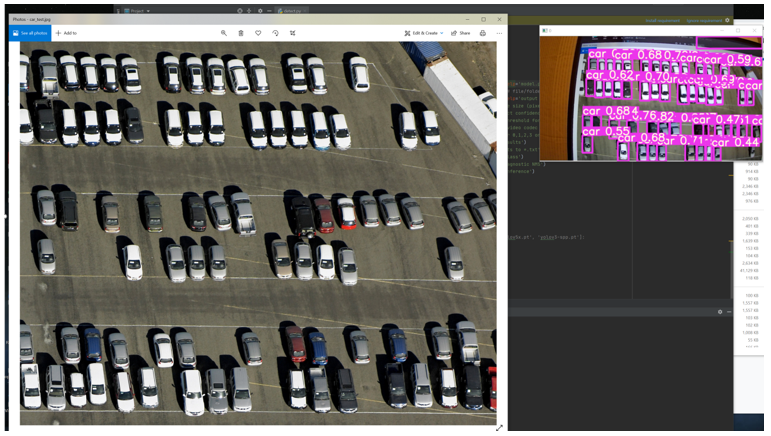

Using camera to test:
testing

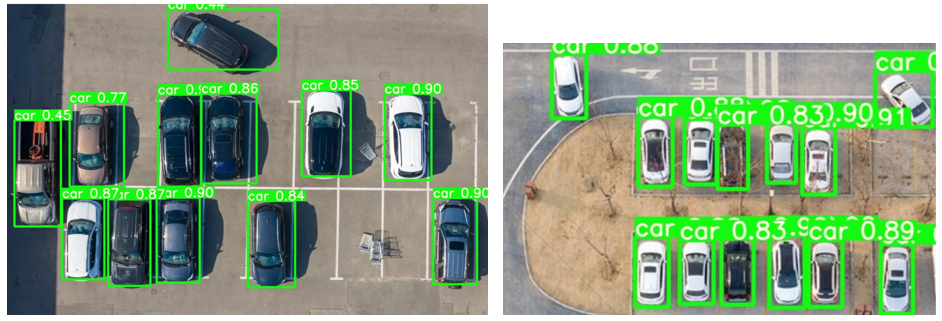

loading image test:
testing
The test result shows that our model can predict the position of cars quite precisely, and the result refreshes rapidly in the camera test. It means we are able to obtain real time data of cars’ position and provide feedback to users in the form of sending message. The prediction code works in a loop while using camera for testing, so, in this case, a message sending button will be needed to control when will the message be sent.

Sending Message to the Phone

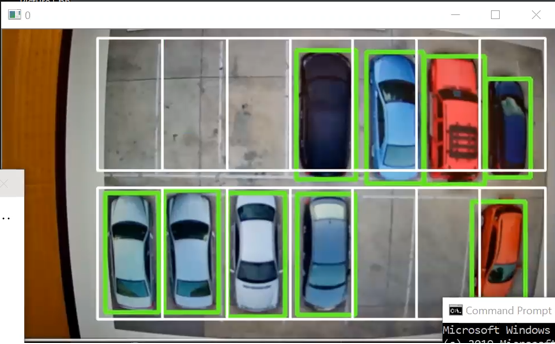

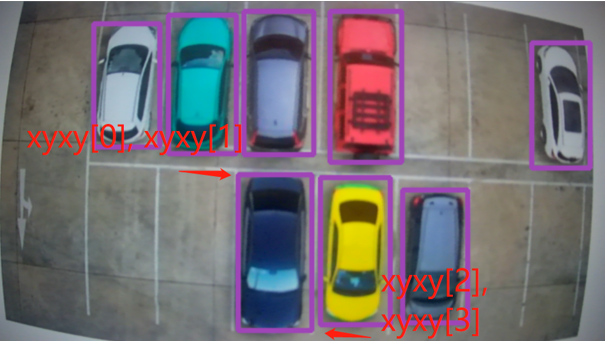

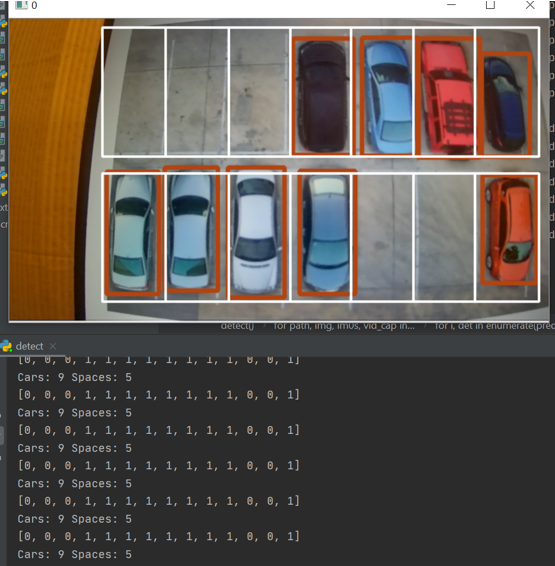

The information that we need to convey is ready after or during the prediction process. As mentioned earlier, we need to create a map and compare it with the prediction result to check whether parking slots are empty. It is difficult to find a recording video in the public parking lot. In order to simulate the project, we just use 4 images including 14 parking slots and some vehicles in different locations. Following is how we match the prediction result with a pre-established map.

Mapping

Mapping

Mapping

Mapping

We will use twilio to get a free trail phone number and perform the function of sending message. Here is the code used in this part：

from twilio.rest import Client
def sendMessage():
    spaces = 14 - cars_num
    content = "Available parking slots are: " + str(empty_slots) + ". " + str(cars_num) + " of them occupied, " + str(spaces) + " of them available." + ""
    myLabel = Label(root, text=content)
    myLabel.pack()
    print(content)
    account_sid = "xxxxxx"
    auth_token = "xxxxx"
    client = Client(account_sid, auth_token)
    message = client.messages.create(to="+xxxxxx", from_="、+xxxxxx", body=content)

Also, we created a button to send a message to the phone after clicking the button. The prediction result will also be ready after the code starts running. Pressing the button will be like a request for getting information.
Mapping

Test result are shown here:
Once the button is clicked, phone would receive a message including the parking space information.

Mapping

Summary

Future Work

Reference
